Capstans in drawing processes: Functionality and optimisation
Capstans are key components in wire drawing processes, used to pull and guide wire through dies, gradually reducing the diameter of the wire. These tools are essential to maintain tension control and ensure a smooth process in which the wire retains its desired mechanical properties.
However, due to high mechanical stresses and environmental conditions, capstans are subject to wear, making it necessary to implement strategies to optimise their performance and extend their service life.
Capstan operation: A key element in wire drawing
The capstan functions as a pull roller that partially wraps the wire, allowing sufficient force to be exerted to pull it through the dies. In wire drawing processes, speed and tension control is crucial to avoid wire breakage or unwanted variations in size and quality.
There are different configurations of capstans, including vertical and horizontal axis capstans, used according to the specific requirements of the production process. Modern capstans are motorised and synchronised through advanced control systems, which ensure a continuous and consistent workflow, minimising waste and improving accuracy.
The materials used for the construction of the capstans must have high wear-resistant properties, as continuous contact with metal wires, often at high speeds, generates friction and rapidly degrades the roller surface.
Performance optimisation: Ceramic and tungsten carbide coatings
Capstan wear is one of the main problems affecting efficiency in wire drawing processes. Over time, the surface of the capstan can deteriorate, compromising the quality of the end product and increasing maintenance costs. To address this problem, advanced coatings can be adopted that improve durability and reduce friction.

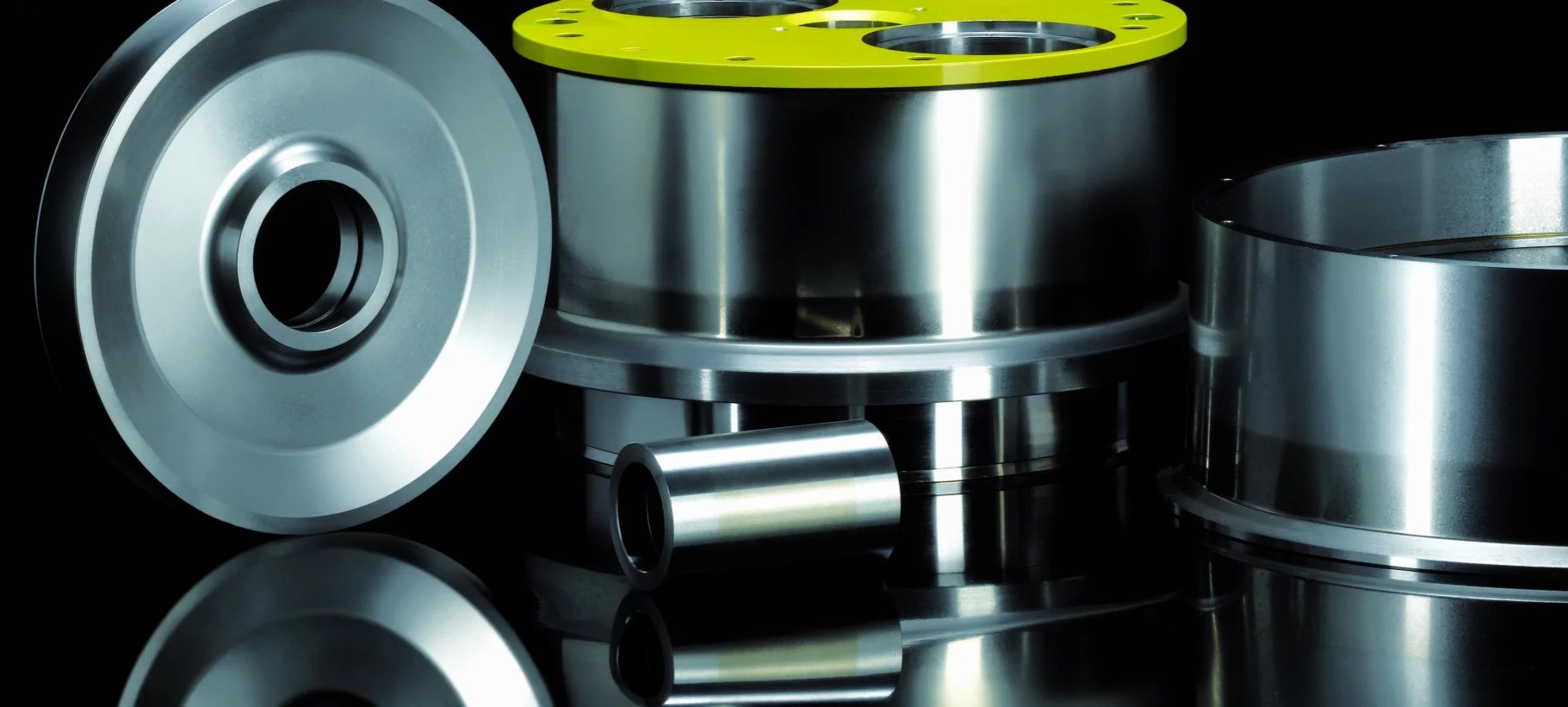

One of the most popular materials used to coat capstans is tungsten carbide, known for its exceptional hardness and wear resistance, which can be found in products such as Paganoni’s Coldside®. This coating creates a tough surface that can withstand the intense friction generated by contact with metal wires. Due to its high hardness, tungsten carbide significantly reduces the wear of the capstan and extends its service life, resulting in savings in maintenance and replacement costs.
Another effective solution is the use of technical ceramic coatings, which offer high resistance to both wear and corrosion, such as the super-synthesised Kersint®. These materials, such as chromium oxide or zirconium oxide, are ideal for capstans that operate under particularly harsh conditions, such as drawing highly abrasive materials or in corrosive environments. Ceramic coatings reduce friction between the capstan and the wire, improving energy efficiency and process accuracy.
In addition to the use of coatings, the performance of capstans can be optimised through proper preventive maintenance. Regular cleaning and checking the condition of the surfaces are essential to avoid premature deterioration and ensure optimal performance of the capstan.
Emerging technologies: Efficient and resistant capstans
The wire drawing industry is constantly evolving and emerging technologies are transforming the way capstans are designed and used. One of the most exciting innovations involves the use of advanced materials and additive manufacturing techniques to produce highly customised and optimised capstans for specific applications.
For example, sintered tungsten carbide or ceramic coatings can be applied using advanced deposition technologies, such as thermal spray or plasma coating, to achieve uniform coatings with excellent mechanical properties. These processes ensure greater adhesion of the coating to the surface of the capstan, reducing the risk of delamination and improving wear resistance.
Another emerging technology is the use of sensors embedded in the capstans to monitor real-time operating conditions such as temperature, rotation speed and surface wear. These monitoring systems make it possible to detect any anomalies in the operation of the capstan and intervene promptly, avoiding breakdowns and unplanned downtime.
Continuous innovation and optimisation with Paganoni
Optimising capstans in wire drawing processes is a key element in improving efficiency and reducing production costs. By adopting advanced coatings such as tungsten carbide and ceramic materials, it is possible to obtain stronger and more durable capstans that can withstand extremely harsh operating conditions.
Paganoni, an industry leader, continues to develop innovative solutions to improve the performance of its capstans, with the aim of offering its customers the highest quality, state-of-the-art products. Emerging technologies, such as sintered coatings and integrated sensors, represent the future of the drawing industry, enabling increasingly efficient and sustainable processes.
